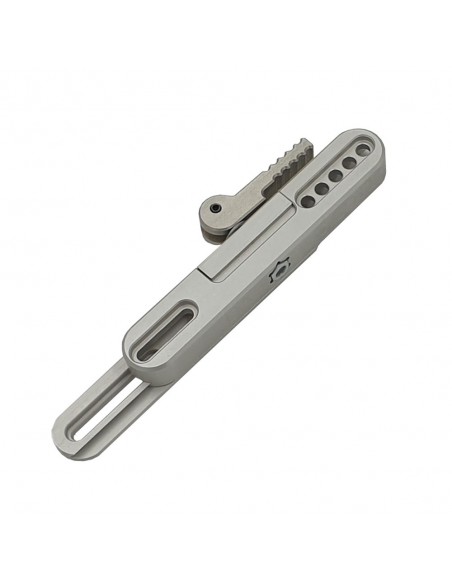

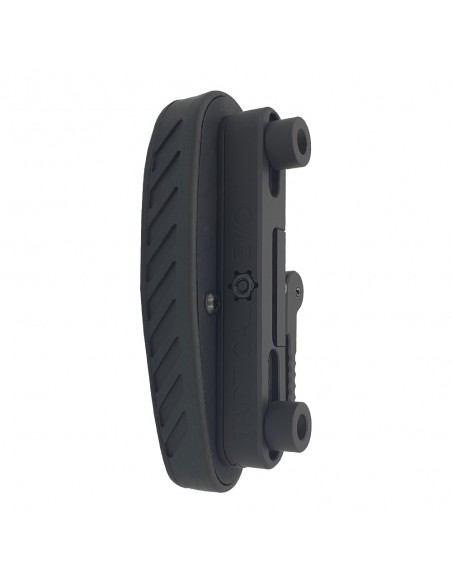

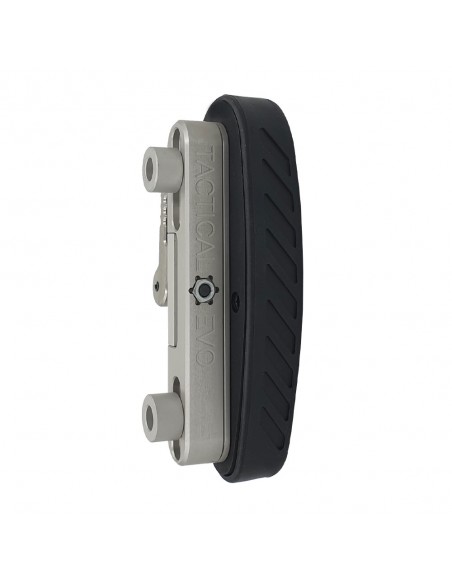

The universal adjustable recoil pad mechanism is designed for all types of stocks. The adjustable mechanism of the recoil pad was developed with regard to the needs of shooters to easily and quickly change its settings.

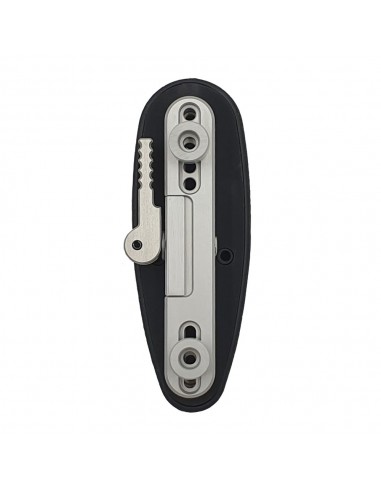

It is possible to use practically any rubber recoil pad that suits you on our height and length adjustable mechanics, or you can buy ATI rubber recoil pads supplied by us, which we recommend and use on our own weapons or their more economical, but very high-quality alternative from Česká zbrojovka a.s.

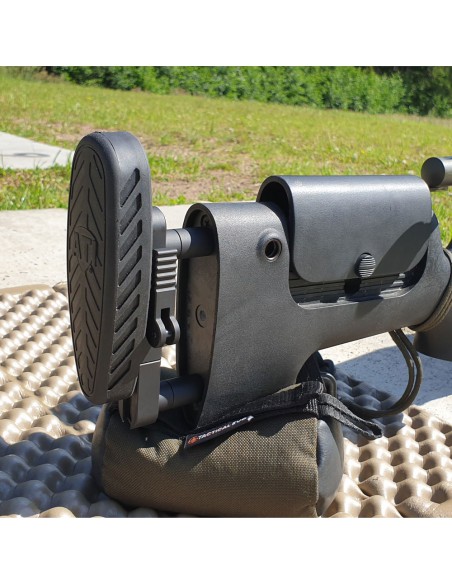

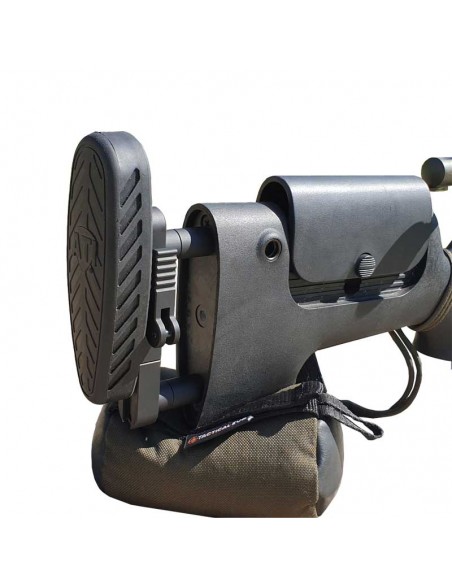

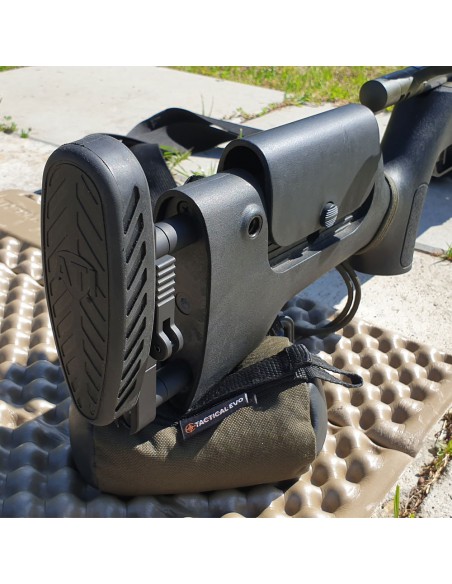

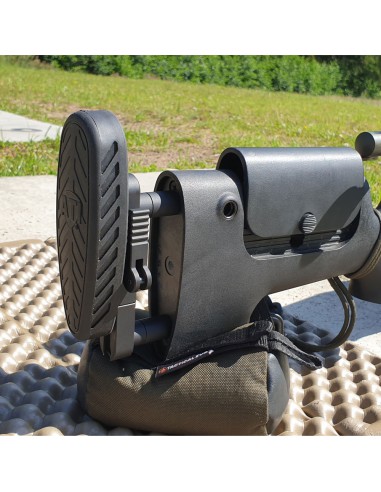

Adjustable universal recoil pad mechanism is designed for most manufactured stocks from wooden to plastic, including stocks for air rifles.

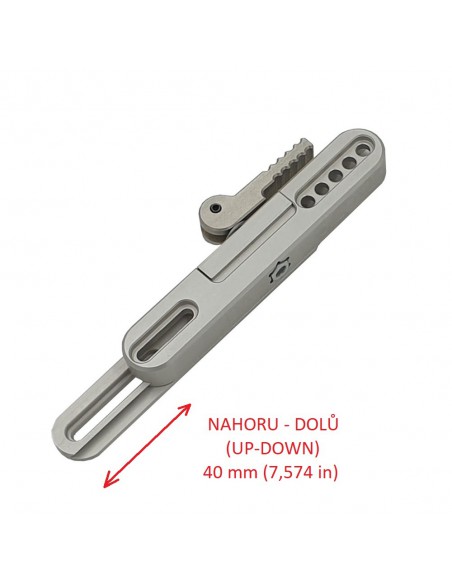

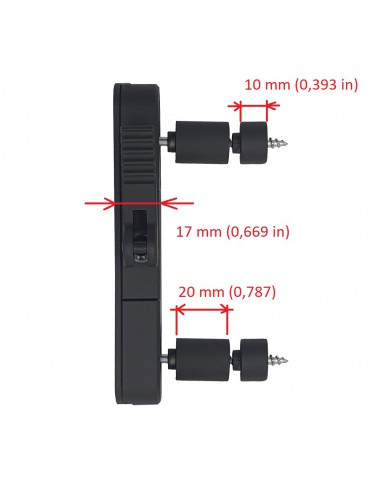

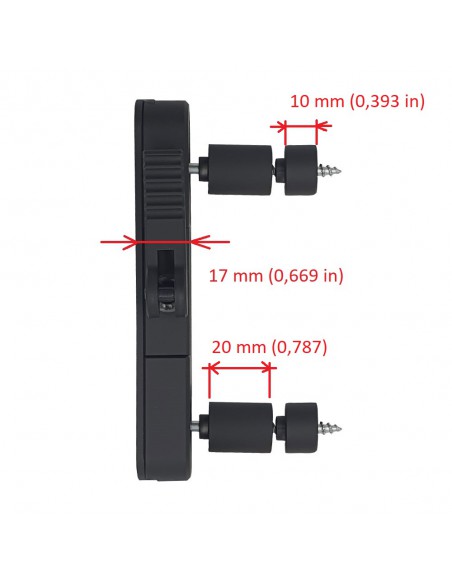

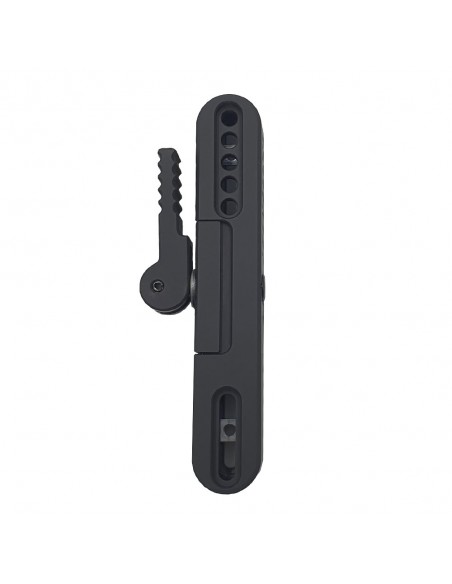

The great advantage of our adjustable mechanics is its versatility, modifiability, small dimensions and low weight. The height adjustment is changed using a proven solution, which we also use on our bipods. Simply release the lever and move the recoil pad to the required position up or down. As for the setting of the distance between the stock and the arm, it is solved using spacer rollers, which have a length of 20 mm (0.787 in) and 10 mm (0.393 in) and can be placed on each other to virtually any length to achieve the desired distance from the stock.
High-quality and perfectly workshop-adjusted adjustable recoil pad mechanics is a proven choice for every sports shooter.

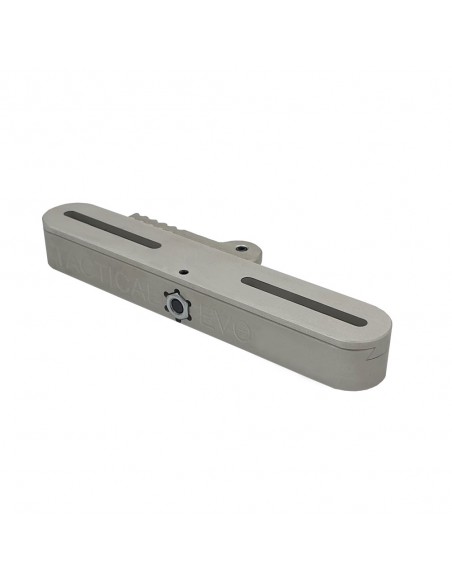

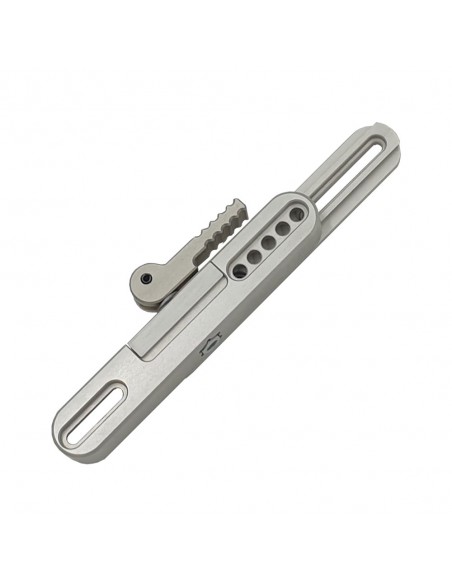

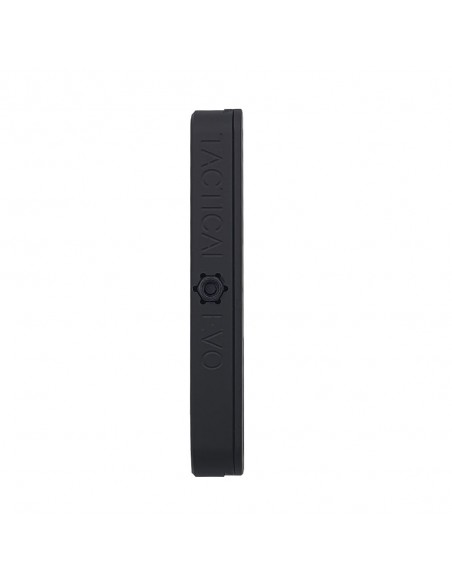

Basically, you can choose from two color versions, which are black and silver, where we perform the surface treatment by anodizing, or if you want any other color from a wide range of cerakote colors, you can contact us individually.
Key advantages
- Universal use with most stocks (wooden, plastic and composite)
- Universal use with most rubber recoil pads (ATI X1 or X2 boots recommended)
- Quality and precise workshop processing on CNC machines
- Made of aviation duralumin of the highest quality
- Easy to install and use
Recommended accessories
- ATI rubber recoil pad, size X1 (low)
- ATI rubber recoil pad, size X2 (high)
- CZUB rubber recoil pad
- Spacer rollers 20mm or 10mm

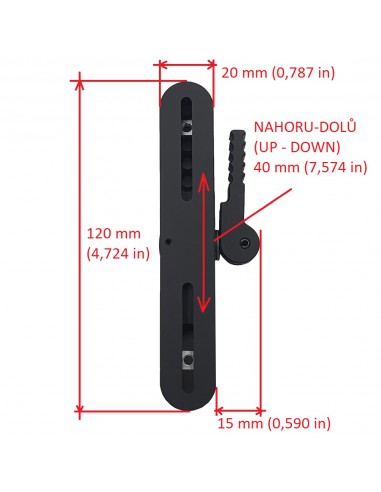

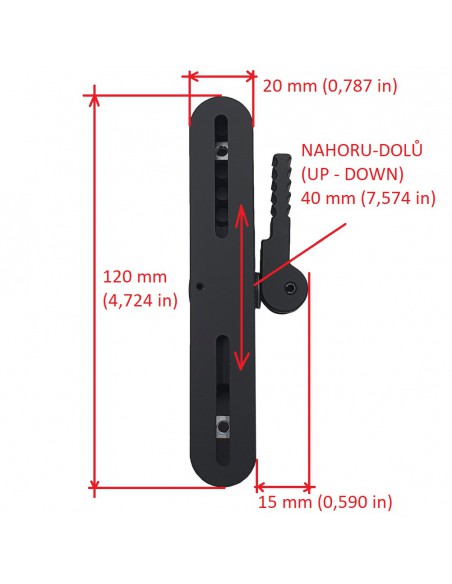

Technical parameters
- Height 120mm (4,724 in)
- Drive width 20mm (0.787 in)
- Width, including locking lever 35mm (1,377 in)
- Depth 17 mm (0.669 in)

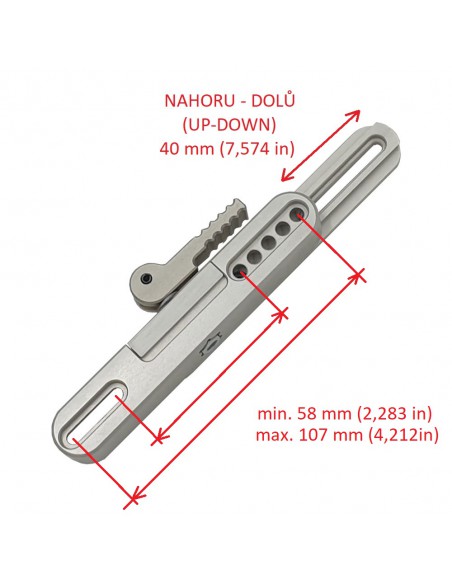

- Eject up or down + - 40mm (7,574 in)
- Weight 96g (0.211 lb) without spacer rollers
- Material AW 6082 T6
Supplied colors
- Black (BLACK)
- Silver (SILVER)
Package contains
- 1 pc Adjustable shoe mechanism, according to the selected color
- 2 pcs Spacer rollers 10mm (0.393 in) (others can be purchased individually)
- basic set of screws for attachment to the stock and recoil pad
The adjustable mechanism of the recoil pad is completely assembled and designed for immediate installation on your stock.
The universal adjustable recoil pad mechanism from Tactical Evo is a great choice for your stock! We recommend using only original accessories. Use of non-genuine spare parts or accessories may damage Tactical EVO products or cause them to malfunction.
Made in Czech Republic.
