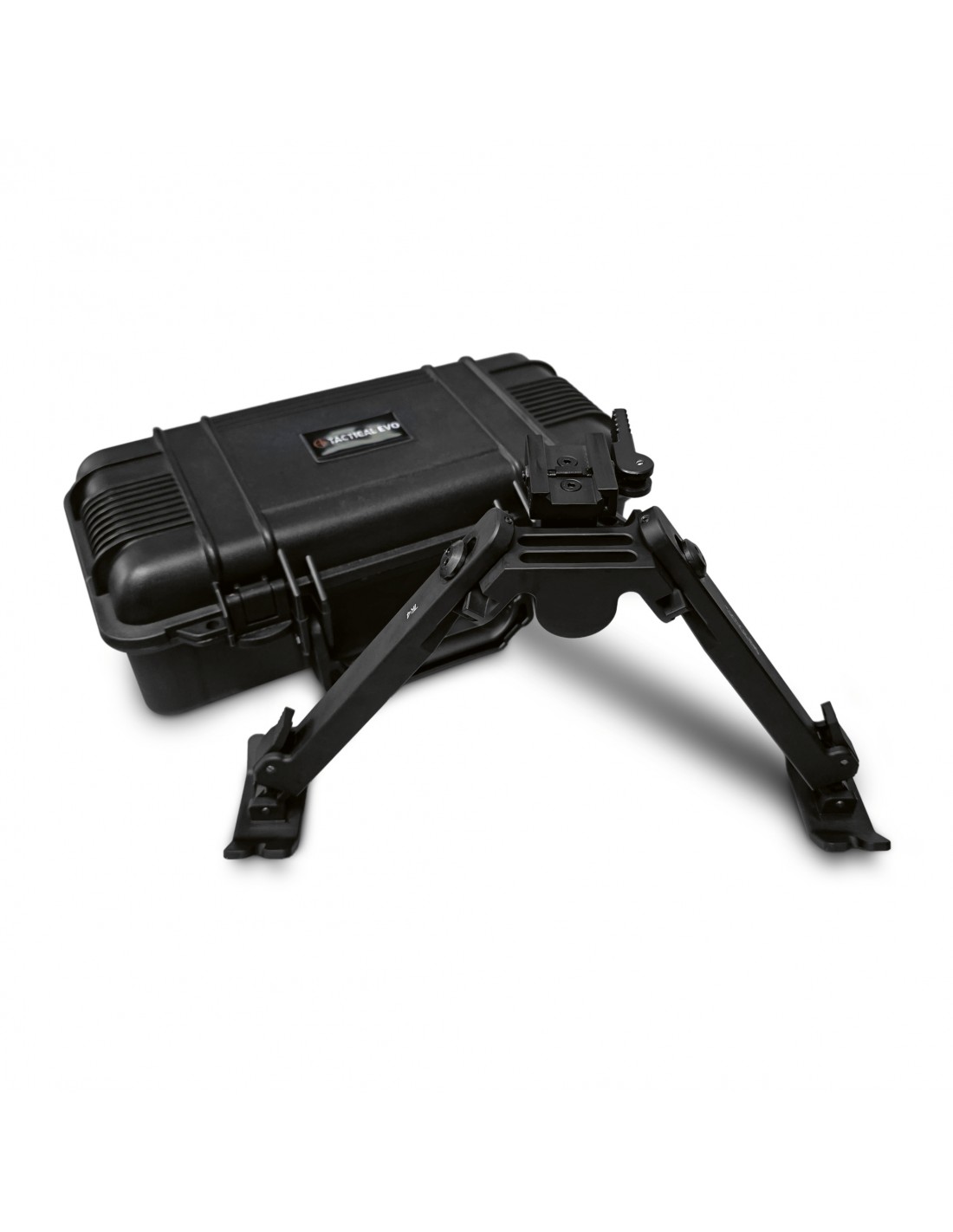

The Tactical TK4 Bipod is a modern tactical bipod developed from the extremely popular and reliable TK3 model. It retains key attributes such as high-quality materials, flawless workmanship, and 100% functionality under all conditions, along with several upgrades that push the Tactical TK4 to the pinnacle of its category.
25 years warranty !!!
The primary upgrade is the modernized system for lateral tilt with bearings and a new mechanism for adjusting leg positions. This system now allows for easier changes in leg position with minimal force, requiring only two fingers to adjust. This simplicity extends to the entire construction of the Tactical TK4 bipod, where, in emergency situations, operation can be handled with just two fingers of one hand. These innovations elevate this already exceptional bipod to a new level.
The Tactical TK4 is further equipped with a pressure tilt function, enabling side tilting of the bipod by merely applying pressure.
The system continues to provide perfect locking of the horizontal pin, which remains secure even when firing large calibers up to .50, but now also offers an adjustable setting allowing the lock to be smoothly overridden. The necessary pressure for the desired tilt change can be easily adjusted with a locking knob. This option, previously an additional charge, is now standard.
The bearing, critical to the pressure tilt system, ensures the system can be perfectly locked or smoothly overridden as needed, allowing for continuous aim adjustment.
The legs of the bipod are easily adjustable in all axes, enabling precise and stable aim positioning according to the shooter's current needs. The patented locking system of the horizontal pin ensures the bipod remains secure even when shooting large calibers (up to .50). The legs feature a five-step incremental extension system, and their innovative "H" profile provides extreme durability, torsional stiffness, and self-cleaning capability.
The bipod is fully adjustable, allowing smooth movement and "head" fixation within a 20-degree range to the right and left, movement of the legs forward and back within 45 and 90 degrees, and incremental leg extension from 140-230 mm (5.511-9.055 in).
Precision, consistency, and accuracy are maintained at maximum levels, exactly as required for completing combat or tactical tasks.
Compared to similar competitive products, the Tactical TK4 Bipod also offers the convenience of easily swapping out mounting systems such as WEAVER, UIT, MLOK, KeyMOD, SPIGOT, etc., making it versatile for use on multiple weapons with different attachment systems. Changing the mounting system is quick, taking no more than 20 seconds.
Standardly, the bipod is fitted with rails designed for tactical use on both solid and soft surfaces, but changing to another rail version to better meet user needs is easily done.
Manufactured from the highest quality aircraft-grade duralumin, the overall production of the product is at a very high level. Individual parts are milled on modern CNC machines, ensuring maximum precision and quality.
The quality of production, maximum processing precision, and innovative technical solutions set it apart from many competitors. Thanks to its high-quality construction and technical solutions, the Tactical TK4 bipod is predestined for very precise long-range shooting during the most demanding tasks.
The bipod has been tested under the most extreme conditions and is suited for both sporting and service use.
The surface finish is treated with highly durable CERAKOTE paints, offering users three basic color options right from the start: black, sand, and green (black, coyote, khaki). Custom painting in any CERAKOTE color is also available upon request.
Individual accessories and potentially spare parts can be found in the SPARE PARTS AND ACCESSORIES section.
The main advantages of Tactical TK4
- Pressure tilt system with bearing
- Modernized leg positioning system
- Patented locking system for the horizontal pin, secure even with the largest calibers
- Innovative "H" shaped leg system ensuring extreme torsional stiffness and self-cleaning capability
- Easy exchange of mounting systems (WEAVER, UIT, MLOK, KeyMOD, SPIGOT, SWIVEL)
- High-quality and extremely precise machining on CNC machines
- Made from the highest quality aircraft-grade duralumin
- Easy assembly and use
- 25 years warranty!!!
Recommended accessories
- MLOK mounting system
- KeyMOD mounting system
- UIT mounting system
- SPIGOT mounting system
- ARCA Swiss mounting system
Technical parameters
- Span: 260–350 mm (10.236-13.780 in)
- Adjustable height: 140-230 mm (5.511-9.055 in)
- Head movement possible: 20 degrees right and left (smoothly adjustable)
- Legs can be set to positions of 45 degrees and 90 degrees forward and backward
- Weight: 620g (1.367 lb)
- Material: AW 7075 T651, AW 6082 T6
Available colours
- Black (BLACK CERAKOTE H-190)
- Sand (COYOTE CERAKOTE H-267)
- Green (KHAKI CERAKOTE H-232)
Package contains
- 1 pc Tactical TK4 bipod
- 1 pc mounting system, as chosen
- 1 pc bipod cover (cordura material - waterproof)
The Tactical TK4 Bipod is fully assembled and ready for immediate use.
The Tactical TK4 Bipod is the best choice for your precise shooting! We recommend using only original accessories. Using non-original replacement parts or accessories may lead to damage to Tactical EVO products or their incorrect function.
Made in the Czech Republic.
